Overview of Marxan

What is Marxan?

Marxan is a tool to guide systematic multi-objective planning. It is the most widely used conservation planning tool globally. Developed by the University of Queensland in Australia, it supports spatial decision-making about the design of terrestrial, marine, and/or aquatic reserves and management areas. Using Marxan, planners can identify a network of sites that collectively includes a suite of biodiversity features with minimal displacement of human interests . The tool produces objective, transparent, and repeatable results that can facilitate smart decision-making that takes into account a broad range of considerations, stakeholders, and tradeoffs in an inclusive, iterative fashion.

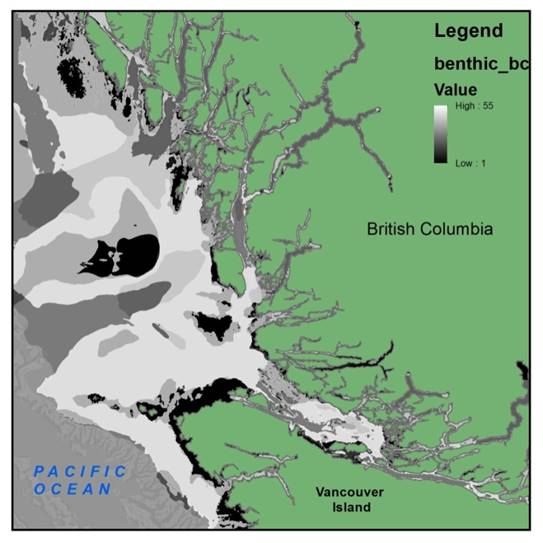

BC benthic value

What does the tool do?

Marxan was designed to address the general problem of how to meet user-defined “targets” for the minimum “cost”. Targets are the amount of each feature that the program is instructed to select (e.g., 15% of each climatic zone should be included in the reserve network). Costs are flexible, and can defined in terms of land value, resource harvest value, cultural value, spiritual value, cumulative impact, etc. However, costs must be represented in the same unit, combined as an index, or run independently under separate Marxan scenarios. High costs are applied to areas that should be avoided for reserve placement. Other options that Marxan provides include the ability to determine the degree of compactness of selected areas (i.e., creating few large or many small reserves), and control over the emphasis on meeting each feature target versus avoiding areas important for economic, social, and/or cultural uses.

Where does Marxan fit into a network planning process?

Decision support tools can be useful in a variety of capacities. Marxan was designed primarily to help inform selection of new conservation areas, while considering the contributions of existing management designations. It produces multiple reserve network configurations that meet project objectives, thus increasing the chance of finding a solution that maximizes conservation interests while minimizing economic, social, or cultural impacts. Marxan also has the flexibility to support participatory planning processes and to help identify outcomes acceptable to multiple stakeholders. Marxan helps users evaluate how well different reserve system options meet conservation and socio-economic objectives, highlight the places that occur in a large number of solutions, and help set priorities for implementation. As with other decision support software, Marxan’s role is to support decision-making. It will not produce a final network of reserves, and results must be fine-tuned to consider the full range of political, socio-economic and practical factors. Marxan can enhance the rigor, transparency and repeatability of decisions that are inherently complex and potentially subjective.

Why is it important to protect a network of sites?

Klein-aus-marxan
Managing various spatial activities requires a spatial solution that is efficient and fair, while meeting stated conservation, socio-economic, and management objectives. No single site, or even a small group of sites, is likely to fill all of the objectives. In order to address a complex multi-criteria problem, several sites will be required since many criteria are often mutually exclusive (e.g., rare species are often not found in biodiverse areas).




What are some advantages of using Marxan?

Marxan requires upfront consideration of critical issues. Planners must determine which spatial features will be considered, how much of each feature is to be conserved, and how data gaps and current limitations will be addressed. Using Marxan also requires involved parties to agree on quantitative conservation targets (or ranges of targets) and which socio-economic data to include early in the process in a transparent and explicit manner. Such decisions can also be altered iteratively after analysis. One of the most substantial advantages of Marxan from a user perspective is its ability to return multiple good solutions. Thus, the tool can help focus on key issues in a process, assist with decision documentation, and facilitate exploration of different combinations and scenarios.

How does the software work?

Marxan relies upon a mathematical equation (not a model) to meet constraints with a number of good solutions. The algorithm answers the minimum set problem, which captures a minimum representation of features for the least cost (as opposed to, for example, the maximum coverage problem of capturing as much representation of features as possible with a fixed budget). The Marxan objective is to minimize the total cost of the reserve network (user-defined layer) and the total boundary (perimeter) of the network, while meeting all targets (i.e., minimizing penalties for not adequately representing features).
The equation that Marxan uses is:
Combined planning unit cost (efficiency) + BLM * combined boundary length (clumping) + SPF * combined target shortfall (penalty for not achieving conservation targets) = Score,
where BLM is the boundary length modifier and SPF is the species penalty factor, both of which control the weighting of terms in the Marxan equation. The solution with the lowest score is the one the Marxan selects as the “best” solution.

What are the steps in a Marxan analysis?

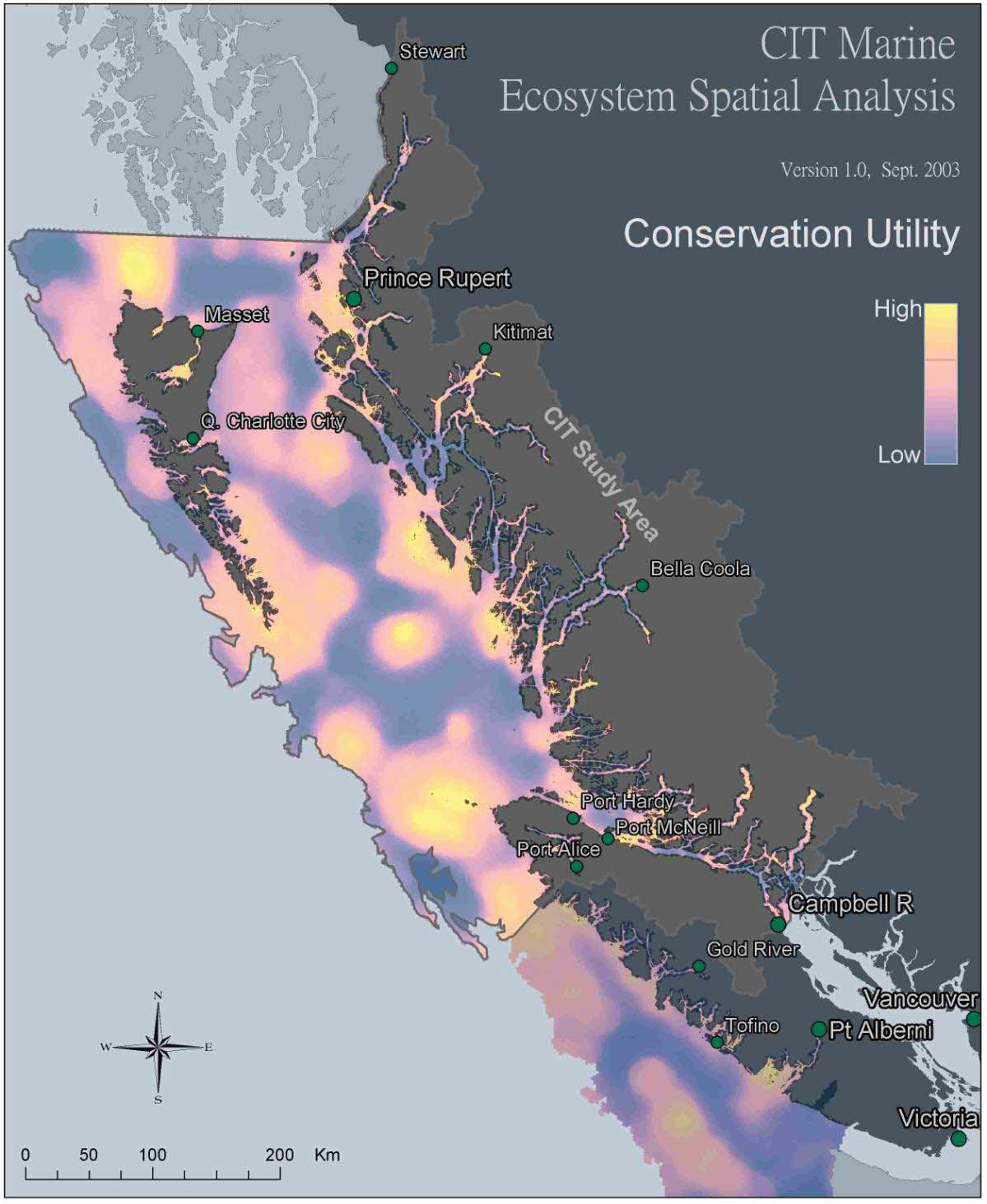

Ardron-CIT_2003_marine-ecosystem-spatial-analysis_BC
1. Identify goals and objectives;
2. Identify features, map best available data;
3. Divide the area into planning units;
4. Tally amount of each feature in each planning unit;
5. Set targets for each feature;
6. Run Marxan analysis, calibrate parameters;
7. Map outputs from desired scenarios;
8. Reiterate analysis with new/updated data and/or constraints at any step.

How can I learn more?

Further insights into such key concepts can be found in the Marxan Good Practices Handbook (and references therein).
PacMARA offers a variety of training and workshop options to suit decision-makers, technical analysts, and everyone in-between. We regularly host capacity-building events in Victoria, BC and travel to locations with enough participants to support a course and/or workshop. Options include…

Introduction to Marxan Course

This two-day hands-on technical course will provide participants with the basic knowledge and skills necessary to use Marxan in a planning exercise, such as:
• Key concepts in systematic conservation planning
• Creating planning units
• Creating the essential Marxan input files
• Parameter setting in Marxan and sensitivity analysis
• Understanding and using Marxan results
• Zonae Cogito (front-end software to support Marxan)
• A brief introduction to Marxan with Zones
Note that a one-day version of the course is available without covering planning unit or input file creation.

Marxan (and other Decision-support tools) for Decision-makers Workshop

This half-day, one-day, or two-day discussion-based workshop will provide a high-level background on approaches and good practices for marine/terrestrial systematic conservation and resource use planning. It covers the questions of when, where, and why to use Marxan and other decision support tools. The interactive and discussion-based workshops will be tailored to specific group interests, mandates, and problems, but usually include:
• Key approaches and tools for systematic planning
• Essential elements of successful planning processes
• Setting targets
• Socio-economic considerations
• Working with stakeholders
• Case studies of planning initiatives around the world
Workshops can be open to any participants (usually covering one day) or customized for a specific group (usually spanning two days).

Advanced Topics in Marxan Workshop

This one-day interactive and discussion workshop is similar to Marxan for Managers, but more technically-focused. It is also flexible, based on participant interest, but usually includes:
• Good practices for spatial data
• Reserve design considerations
• Case studies of planning initiatives around the world
• Setting targets
• Socio-economic considerations
• Working with stakeholders

Marxan with Zones Course

This one-day technical training is currently being developed.

Please contact us at info (at) pacmara.org to organize an event in your area!
Also, watch our Marxan wiki site for updates, useful information, and guest presentations from all of our past courses.
